MS11 / MSE11 spare parts for Poclain hydraulic motors are available as aftermarket replacement components for repair, maintenance and rebuilding. Request MS11 motor parts or MSE11 motor parts using the exploded diagram and parts list below.
Replacement Parts for Hydraulic Motor Repair

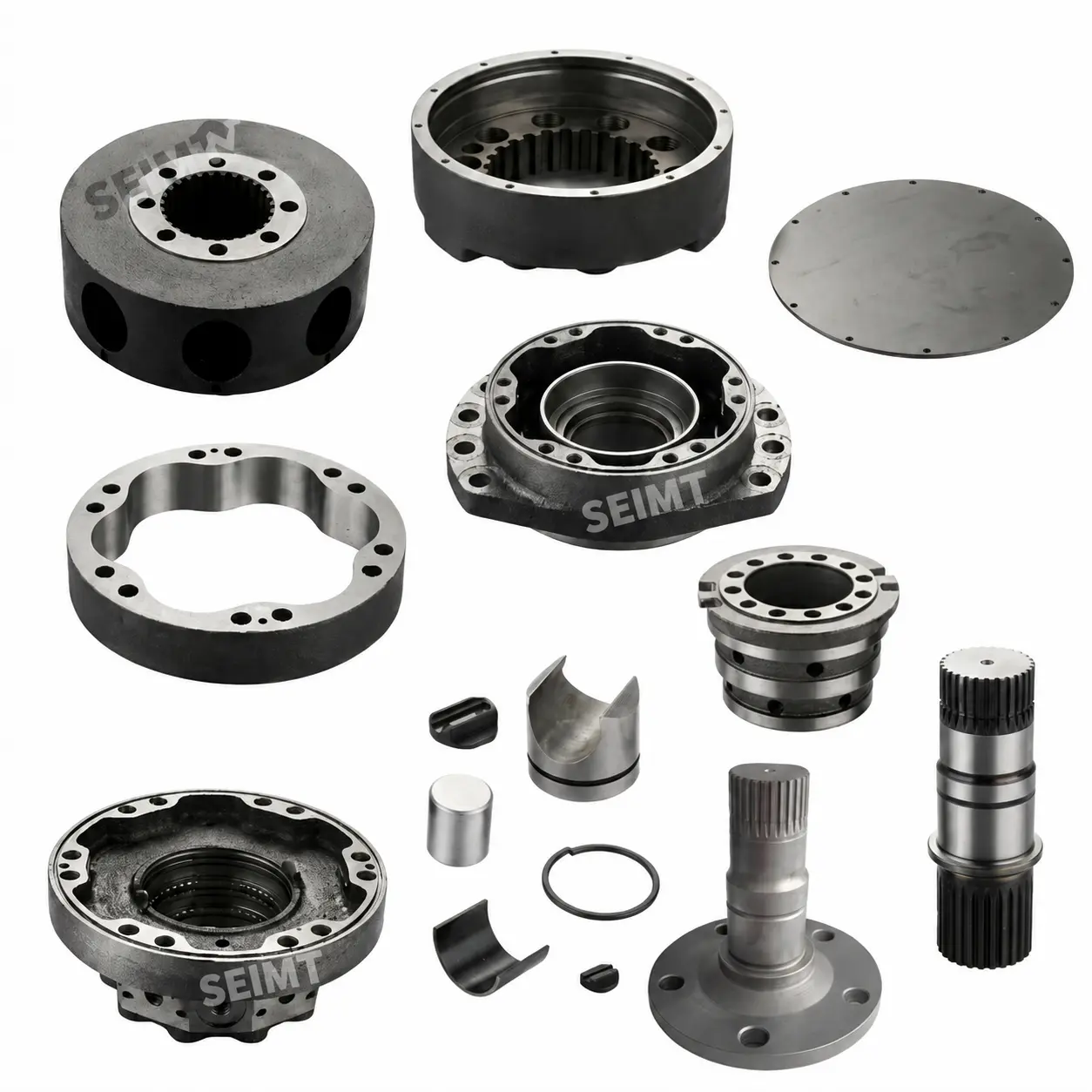

Repair components include drive shafts, stators, rotors, pistons, rollers, distributors and brake friction discs, as shown in the list. Request individual parts or an assembly for your repair. If a motor is leaking, noisy or losing performance, inspection helps establish which components need replacement before ordering.

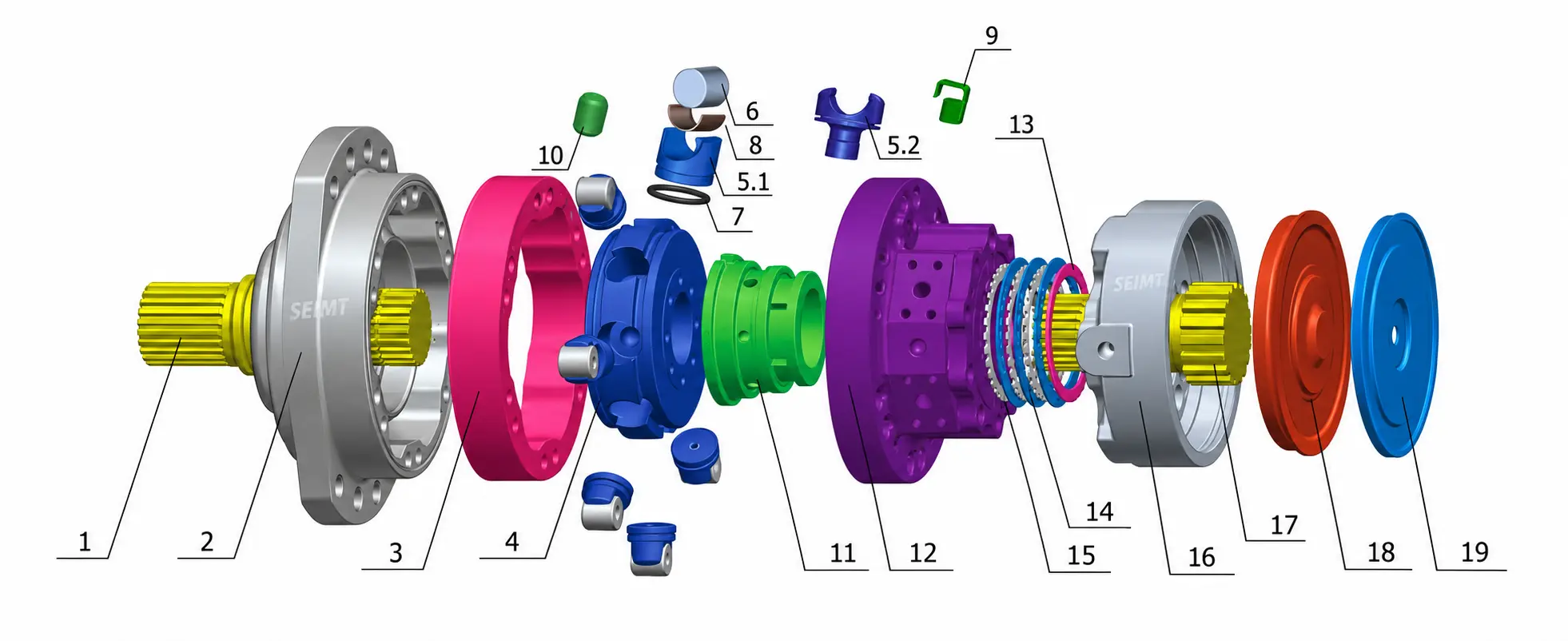

MS11 / MSE11 Exploded Diagram
| Artículo | Descripción | Cantidad | Artículo | Descripción | Cantidad |
|---|---|---|---|---|---|
| 1 | Eje de transmisión | 1 | 10 | Plastic Block | 16 |
| 2 | Portada | 1 | 11 | Distribuidor | 1 |
| 3 | Estator | 1 | 12 | Contraportada | 1 |
| 4 | Rotor | 1 | 13 | Cuña de ajuste | 1 |
| 5.1 | Plunger Piston (MS11) | 8 | 14 | Fricción dinámica | 19 |
| 5.2 | Plunger Piston (MSE11) | 8 | 15 | Fricción estática | 19 |
| 6 | Rodillo | 8 | 16 | Cilindro de freno | 1 |
| 7 | Anillo de pistón | 8 | 17 | Eje de freno | 1 |
| 8 | Casquillo | 8 | 18 | Émbolo de freno | 1 |
| 9 | Spring Pin | 8 | 19 | Placa de cubierta | 1 |
Items 5.1 and 5.2 are alternative piston versions for MS11 and MSE11 respectively; select the version required for your motor.
Ordering MS11 / MSE11 Parts
Send the required part name, diagram item or reference number when available, together with the quantity. Tell us whether you need an individual component or a complete assembly.
Component versions can differ within this motor family. For pistons and other version-dependent parts, the full motor code, existing part reference or dimensions help identify the correct option.
Need a complete unit? See the MS11 replacement hydraulic motor. For sealing components, see the MS11 seal kit.
