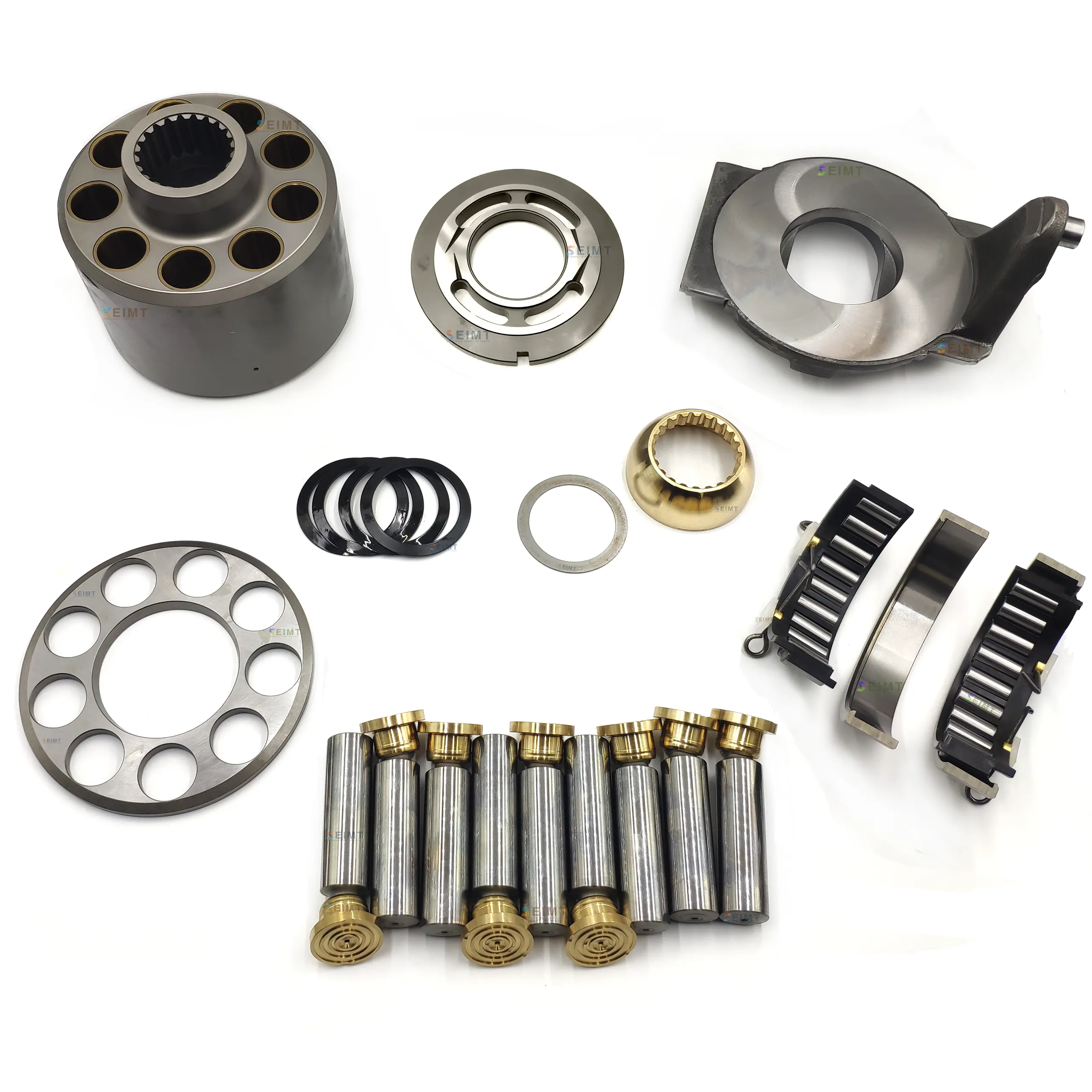

Our aftermarket A4VG110 spare parts are manufactured for Rexroth hydraulic pump repair and servicing requirements. The available replacement range covers cylinder block (barrel), piston shoe (piston slipper), valve plate (port plate), retainer plate (retaining plate), ball guide (retaining ball), swash plate (cradle), drive shaft, bearings, rotary group, seal kit, and other internal components.
Designed for hydraulic service and maintenance applications, these parts help restore pump performance and provide reliable solutions for equipment repair companies and spare parts suppliers.

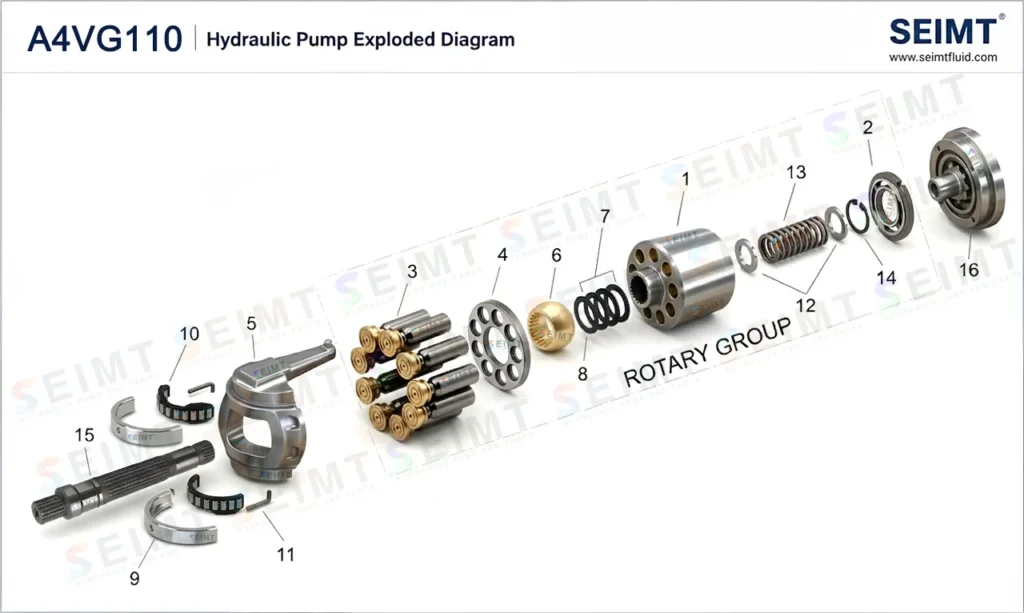

A4VG110 Exploded Diagram
| No. | A4VG110 Spare Parts | Reference / Function |
|---|---|---|
| 1 | A4VG110 Cylinder Block (Barrel) | R902114099 |
| 2 | A4VG110 Valve Plate (Port Plate) | R902167488 |
| 3 | A4VG110 Piston Shoe (Piston Slipper) | R902118914 |
| 4 | A4VG110 Retainer Plate (Retaining Plate) | R902205414 |
| 5 | A4VG110 Swash Plate (Cradle) | R902205115 |
| 6 | A4VG110 Ball Guide (Retaining Ball) | R902240832 |
| 7 | A4VG110 Disk Spring (Shim) | R902127870 |
| 8 | A4VG110 Cup-Spring Stack | R902127870 |
| 9 | A4VG110 Cradle Bearing Seat (Bearing Liner) | R902603178 |
| 10 | A4VG110 Cradle Bearing (Saddle Bearing) | R902603576 |
| 11 | A4VG110 Wire | |
| 12 | A4VG110 Washer | |
| 13 | A4VG110 Pressure Spring | |
| 14 | A4VG110 Retaining Ring | |
| 15 | A4VG110 Drive Shaft | R902121025 |
| 16 | A4VG110 Charge Pump (Gear Pump) | |
| * | A4VG110 Rotary Group (Rotation Assembly) |
