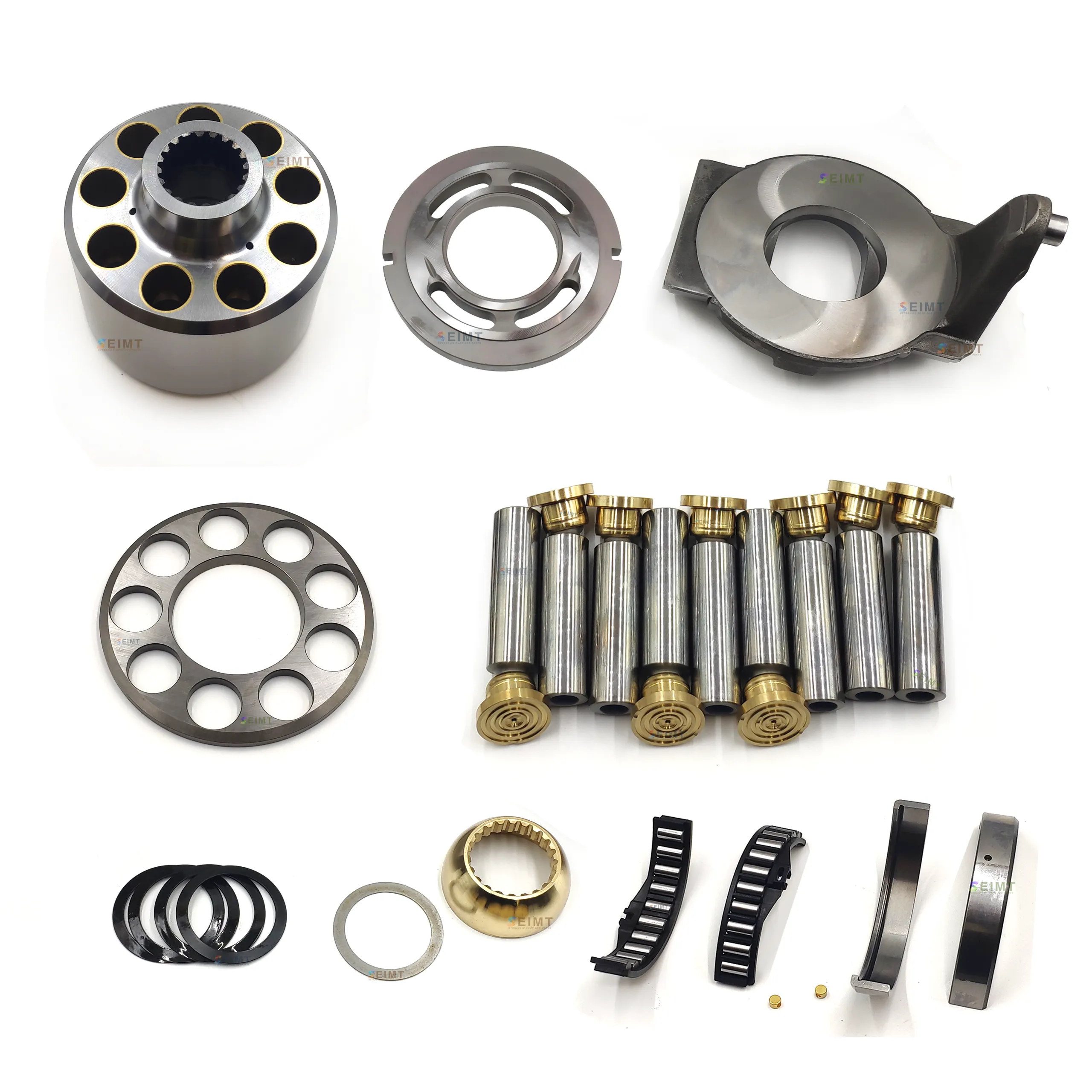

Our aftermarket A4VG180 spare parts are manufactured for Rexroth hydraulic pump repair, servicing, and overhaul. Available replacement components include cylinder block (barrel), piston shoe (piston pad), valve plates, retainer plate (retaining plate), ball guide (retaining ball), swash plate (cradle), drive shaft, cradle bearings, charge pump (gear pump), rotary group, seal kits, and additional hydraulic pump parts.
Designed for stable performance and reliable replacement, these components are widely used by hydraulic repair companies, machinery maintenance providers, and spare parts distributors worldwide.

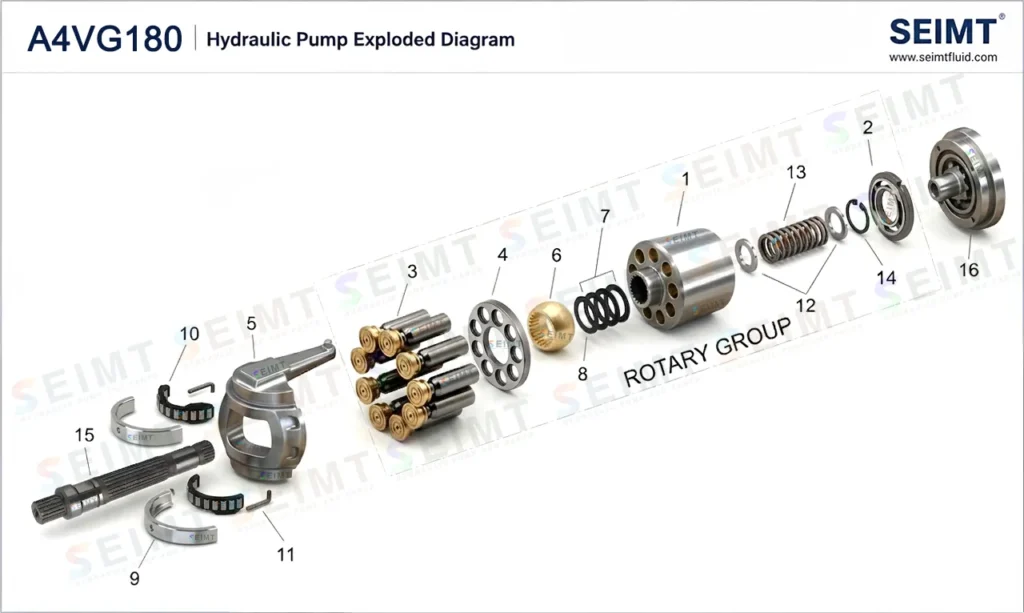

A4VG180 Exploded Diagram
| No. | A4VG180 Spare Parts | Reference / Function |
|---|---|---|
| 1 | A4VG180 Cylinder Block (Barrel) | R902105529 |
| 2 | A4VG180 Valve Plate (Control Plate) | R902195232 |
| 3 | A4VG180 Piston Shoe (Piston Pad) | R902079125 |
| 4 | A4VG180 Retainer Plate (Retaining Plate) | R902205457 |
| 5 | A4VG180 Swash Plate (Cradle) | R909445149, R90944514 |
| 6 | A4VG180 Ball Guide (Retaining Ball) | R902226671 |
| 7 | A4VG180 Disk Spring (Shim) | R909432995, R909432996, R909432997, R909432998 |
| 8 | A4VG180 Cup-Spring Stack | R902192960 |
| 9 | A4VG180 Cradle Bearing Seat (Bearing Shell) | R902066595 |
| 10 | A4VG180 Cradle Bearing (Cage) | R909830146 |
| 11 | A4VG180 Wire | R909403549 |
| 12 | A4VG180 Washer | R902105545 |
| 13 | A4VG180 Compression Spring | R909435429 |
| 14 | A4VG180 Retaining Ring | R909083408 |
| 15 | A4VG180 Drive Shaft | R909921727, R909921726 |
| 16 | A4VG180 Charge Pump (Gear Pump) | R909606246, R909606233, R909606243 |
| * | A4VG180 Rotary Group (Rotation Assembly) | R902105283 |
